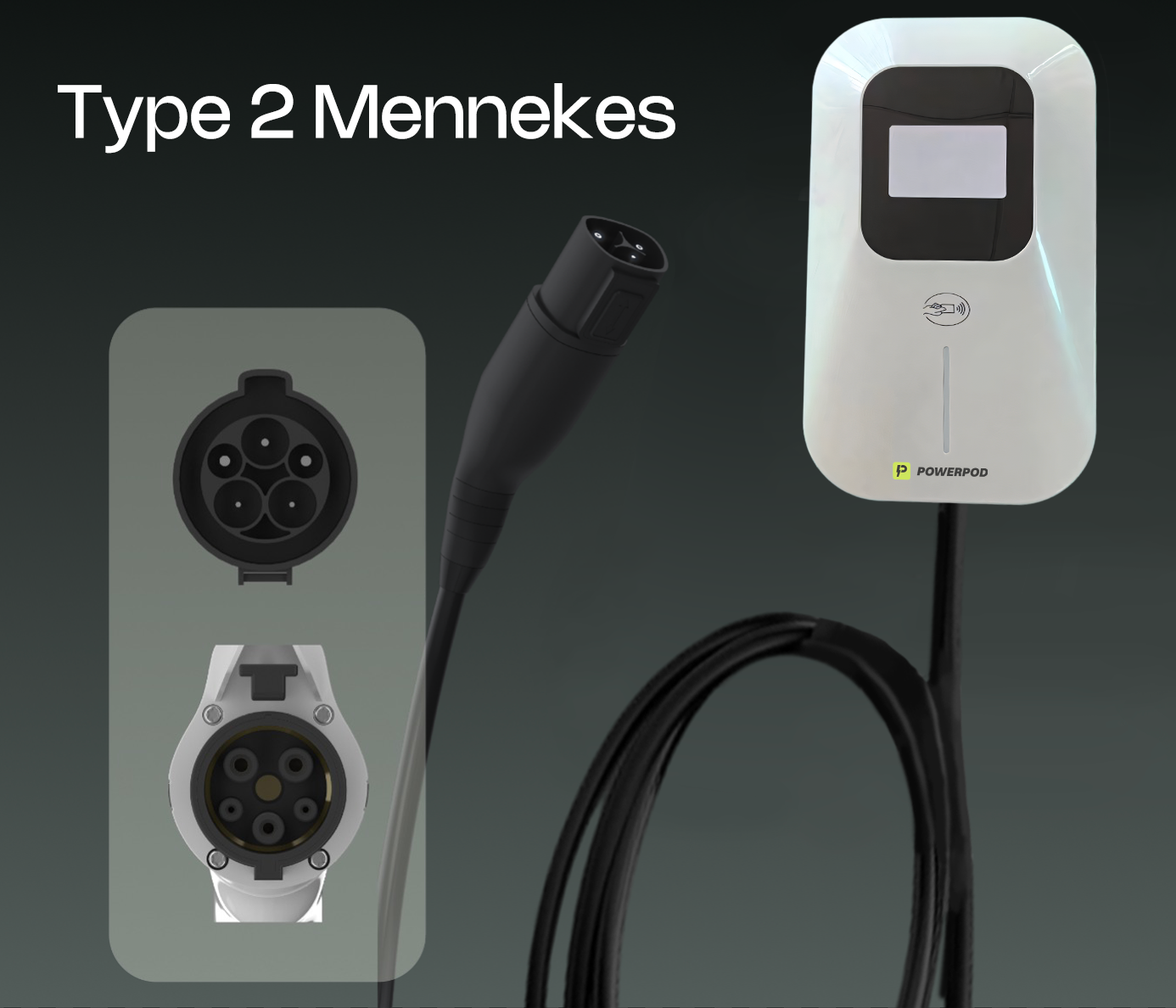

PowerPod Pulse II/AC Charger/Tesla/NACS

PowerPod is the world’s first EV Charger powered by zero-knowledge proof that allows you to charge smart not hard.

***

Functions and Features

1. Charging as Mining

Charging with PowerPod Pulse II enables users to earn passive token rewards, utilizing cutting-edge blockchain technologies to monetize every electron flowing into the cars.

- Product Quality

Guarantee solid product safety and durability with finest PC materials and a 1-year warranty.

- Ease to Use

Users enjoy convenience from installation to usage, simply scan a QR code and follow the instructions on the app.

Product Parameters

• Input Compatibility: NEMA 6-50 & NEMA 14-50 plugs
• Rated Current:
  • HSAC40A: 40A
  • HSAC50A: 50A
• Voltage & Frequency: 240V (±10%~15%), 50/60Hz
• Maximum Output Current:
  • HSAC40A: 40A
  • HSAC50A: 50A
• Enclosure Material: Durable galvanized steel
• LED Indicators: Green / Yellow / Red status lights
• User Access: RFID card reader (Mifare ISO/IEC 14443 A)
• Emergency Stop: Yes (built-in)
• Communication Options (optional):
  • WiFi
  • Ethernet
  • 3G/4G
• Protocol Support: OCPP 1.6 JSON
• Energy Meter: Optional
• Safety Features:
  • Overcurrent, short circuit & surge protection
  • Ground protection
  • Over/under voltage & frequency protection
  • Over-temperature protection
  • Residual current protection (30mA Type A + 6mA DC)
• Protection Ratings:
  • Ingress: IP54
  • Impact: IK08
• Certifications: UL/ETL, EN/IEC 61851-1:2017 & 61851-21-2:2018
• Installation: Wall-mount or pole-mount
• Operating Temperature: -30°C to +50°C
• Humidity Range: 5% ~ 95%
• Maximum Altitude: <2000m
• Dimensions (HWD): 313 × 246 × 100mm
• Package Size (LWH): 460 × 400 × 170mm
• Weight:
  • HSAC40A: Net 3.5kg / Gross 4.0kg
  • HSAC50A: Net 4.0kg / Gross 4.5kg
• Packaging: Carton box
